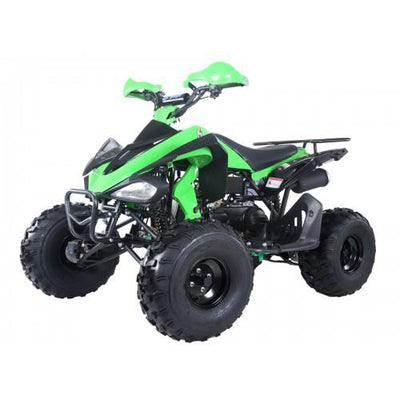

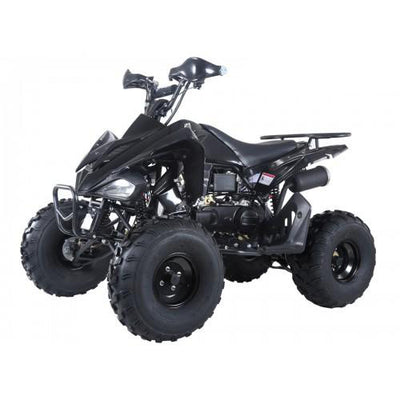

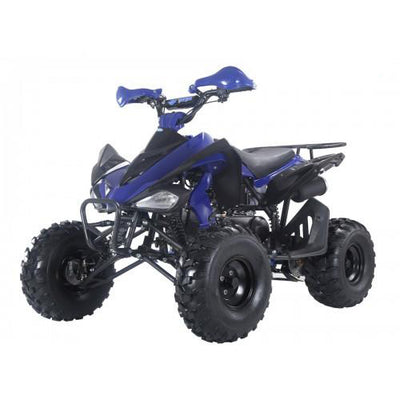

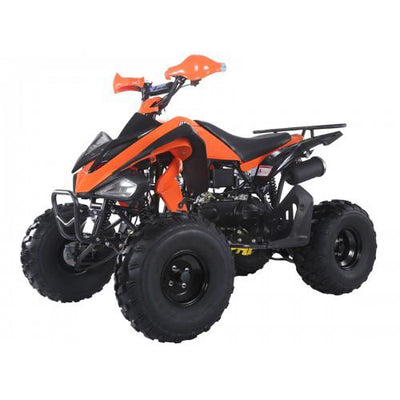

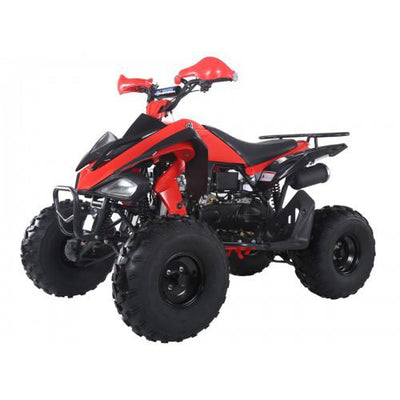

The ATA-150G held up very well in our test rides as we put a 6’5 230 lb rider on a motocross track. The suspension was able to handle the track and as you can see this large-sized ATV can be enjoyed by the entire family. The 150cc is our largest sport ATV that we offer allowing Tao Motor to step out of the kids-only market to serve all sizes of riders.
The ATA-150G is an automatic with reverse the shifter is located on the right side out of the way. It has 11hp with a top speed around 40mph seat height is 29 inches with drum brakes on the front and hydraulic disk brake in the rear.
This unit still has the speed limiter which is awesome to always have available when you are letting inexperienced riders learn how to ride. Along with that comes a forward neutral and reverse that comes in very handy during trail rides.
ENGINE | |
---|---|
Engine Type | 149cc, Air cooled, 4-stroke, 1-cylinder, automatic |
Start Type | Electric Start |
Transmission | Chain Drive |
Engine Gear | F-N-R |
Shift Gear | Hand |
Max Torque | 8.5N.m/5000-5500r/min |
Ignition | CDI |
Fuel Tank Capacity | 1 Gallon |
CHASSIS | |
---|---|
Front Hand Brake | Drum |
Rear Foot Brake | Hydraulic Disc |
Tire Front | 21 x 7 -8 |
Tire Rear | 20 x 9.5 - 8 |
Front Suspension | 15.9 Inches |
Rear Suspension | 18.11 Inches |
Speed Limiter | Yes |
Engine kill switch | Yes |
Battery | 12V/9Ah |
Wheelbase | 45.3 Inches |
DIMENSION | |
---|---|
G.W | 355 LBS |
N.W | 309 LBS |
Max Loading | 198 LBS |
Carton Size | 58 x 33 x 32 Inches |
Seat Height | 29.5 Inches |
Ground Clearance | 4.7 Inches |
